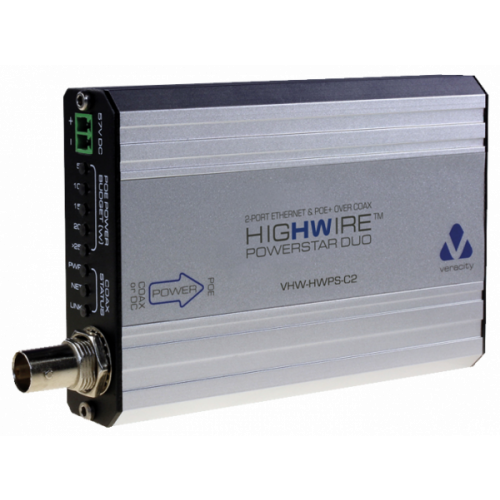

HIGHWIREPOWERSTARDUOVHW-HWPS-C2

2 port ethernet and PoE over coax

Your Order

QTY

More than 10 items in stock

TOTAL

£251.70

HIGHWIRE Powerstar Duo makes the most of your legacy cabling and multiplies its capability by connecting two IP cameras or other network devices. Ethernet over Coax HIGHWIRE Powerstar Duos unique ultra low-power design and efficient power delivery enables long range Ethernet over coax. It works even over the lowest grade cable, such as the high-resistance, copper-clad steel (CCS) types found in many legacy installations. This means that legacy coax upgrades can be planned with confidence, while a quick check of the SafeView power level display reaffirms that the device connections will continue to be reliable, whatever the cable used. For predictable network operation with no restrictions, HIGHWIRE technology delivers a full 200Mbit/s of bandwidth at 300m (1000 ft) of RG-59 or 500m (1600 ft) of RG-11 coax. For full information on POE-over-Coax distances achievable, please refer to the Range Table in the HIGHWIRE Powerstar datasheet or on the Veracity website. HIGHWIRE Powerstar DUO The DUO variant of HIGHWIRE is designed for the camera end of the coax and, with an integrated two-port POE switch, enables connection of two IP cameras over a single coax. With no need to configure IP addresses, set DIP switches, or make awkward measurements and calculations, installing HIGHWIRE Powerstar Duo is simple. The Base end of the coax is driven by single-channel, 4-channel or 8-channel HIGHWIRE Powerstar Base unit. The DUO unit can be powered either by POE over coax, delivering a maximum total POE power budget of 25 watts, or by one of the optional local PSUs, delivering 40 or 78 watts. HIGHWIRE Powerstar Duo features Veracitys unique SafeView display, to provide IP camera installers with an instant and very easy-to-understand confirmation of correct operation from either end of the cable. POE over Coax or Local Power In the simplest implementation the BASE unit receives power from a standard POE switch or Veracitys 57V DC PSU and transmits POE over the coax. This is shown in the diagram below. The DUO unit receives this power and delivers up to 25 watts shared between two IP cameras. No external power cabling is required, and all detection and setup occurs automatically. For higher POE power budgets, an optional Veracity 57V DC PSU may be used to power the DUO locally at the camera end delivering 40 watts or 78 watts depending on PSU model.
Reuses existing coax cable for 2 IP cameras or devices and Integrated 2 port PoE switch (PoE plus with local power option)
Eliminates separate power cabling with PoE over Coax
Compatible with all HIGHWIRE Powerstar Base units (1, 4 and 8ch)
Instantly check connection and power level with Safeview
Completely automatic connection, no configuration required
100BaseTX performance over 300m of RG59 (500m on RG11)
